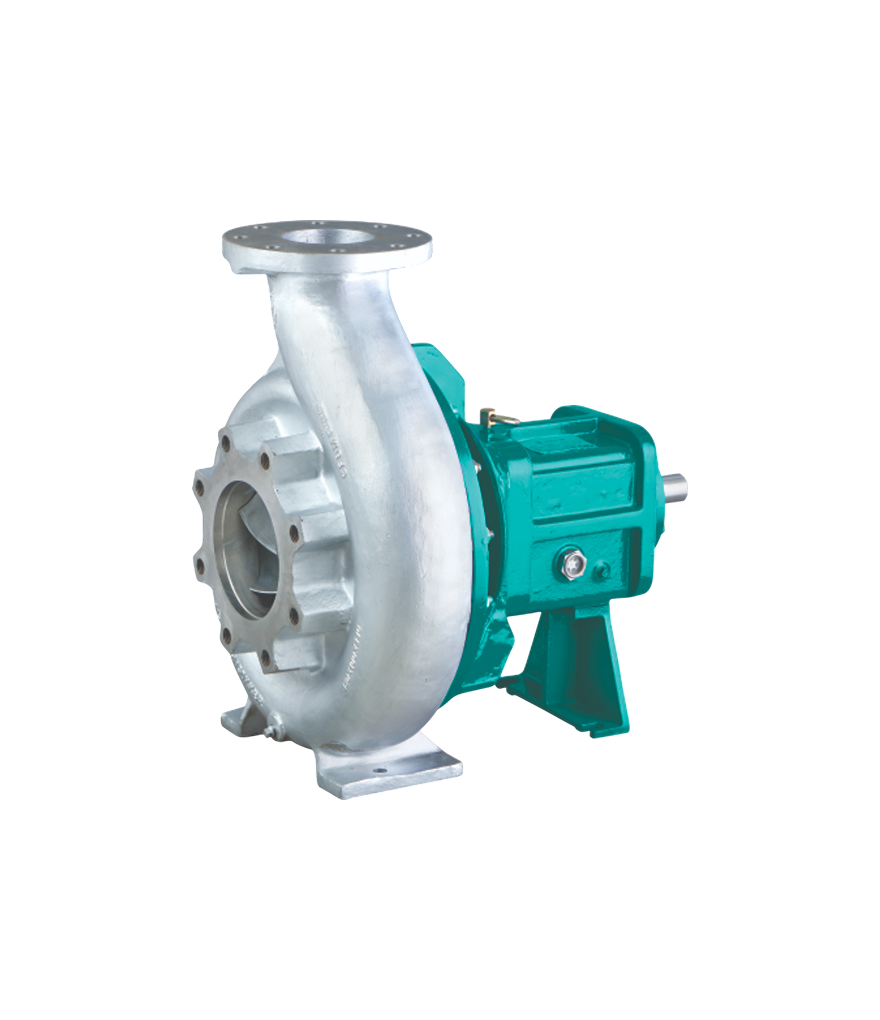

End Suction Paper Pulp – TEP Series
Technical Specification
| Head Range | 10 – 102m |
| Flow Range | 20 – 3100m³/h |
| Speed | 720 / 960 / 1450 rpm |
| Impeller Type | Semi Open Impeller |
| Outlet Size | 2½” – 14″ |
| Power Range | 2 – 298 kW |
| Maximum Liquid Temperature | -10°C to 90°C |
| Shaft Seal | Standard: Gland Packing Optional: Mechanical Seal |
| Bearing Lubrication | Oil |
| Flange Standard | ASME 16.5 Class 150 |
| Maximum Working Pressure | 12 – 16 bar |
Material of Constructions
Cast Iron, SS 316 (CF8M), SS 304 (CF8), Chromium, Nickel
Applications
Product Description
The TEP Series End Suction Pumps are engineered to deliver reliable, high-efficiency performance in demanding industrial environments. Designed specifically for handling challenging fluids such as pulp, paper stock, and fibrous slurries, these pumps are widely used across pulp & paper, sugar, food, dairy, and process industries. With the ability to manage slurry consistencies up to 8%, the TEP Series ensures smooth and efficient transfer of viscous and solids-laden media.
A standout feature is the non-clog semi-open impeller with a bull nose design, enabling seamless flow of fibrous materials while minimizing blockages. The adjustable impeller-to-wear plate clearance allows precise performance tuning and extends component life through a simple shim-based adjustment system. Combined with a robust back pull-out design, maintenance becomes easier, reducing downtime and improving operational efficiency.
The TEP Series is built with modular construction and interchangeable spare parts, making servicing convenient and cost-effective. Available in multiple material options and sealing configurations, including gland packing and mechanical seals, these pumps can be customized to meet specific process requirements. With a head range of 10–102 meters, flow rates up to 3100 m³/h, and power capacity reaching 298 kW, the TEP Series offers a versatile and dependable solution for a wide range of industrial applications.
