TVT Series
Technical Specification
| Power Range | Upto 1340 Hp |
| Flow Range | Upto 9000 m³/hr |
| Head Range | Upto 200 m |
| Liquid Temp. | Upto 90°C |
| Shaft Seal | Mechanical & Gland |
| Speed | 720 / 900 / 1150 / 1700 / 3450 rpm |
| Outlet Size | Upto 36″ |
| Working Pressure | Upto 20 bar |
Material of Constructions
CI, Bronze, SS & Alloy Steel
Applications
Product Description

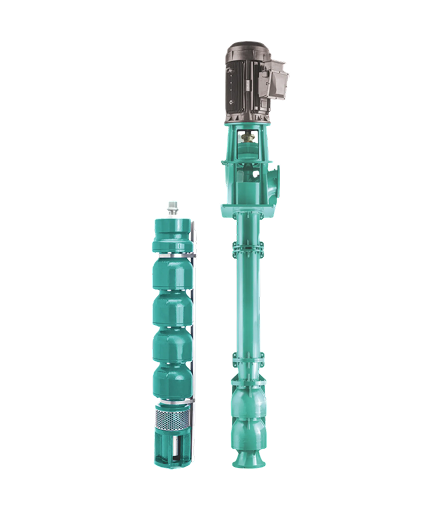

The TVT Series vertical turbine pumps are engineered for high-capacity, heavy-duty, and reliable water handling, making them ideal for industrial, municipal, and power generation applications. Designed to operate at multiple speeds (720, 900, 1150, 1700, and 3450 rpm), these pumps deliver flexible performance across diverse flow and head requirements.
With a power range of up to 1340 HP, a flow range of up to 9000 m³/hr, and a head of up to 200 meters, the TVT Series ensures efficient and dependable liquid transfer even under demanding conditions. Capable of handling liquid temperatures up to 90°C, these pumps provide versatility for water, industrial, and process applications. Equipped with mechanical or gland shaft seals and supporting outlet sizes up to 36″ at a working pressure of up to 20 bar, the TVT Series guarantees stable and leak-free operation under high-pressure conditions.
Constructed from CI, Bronze, Stainless Steel, and Alloy Steel, these pumps offer exceptional corrosion resistance, mechanical strength, and long-term durability. The vertical turbine design ensures high efficiency, smooth operation, and easy maintenance, making the TVT Series a trusted solution for large-scale pumping installations requiring robust and high-performing pumps.
