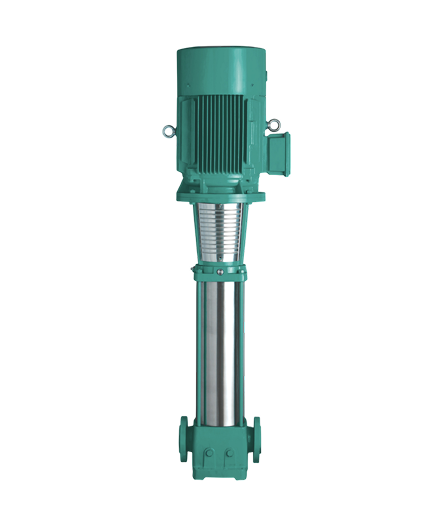

TV Series
Technical Specification
| Frequency | 50Hz |
| Power Range | 0.37 – 2.2 kW, 1 Phase, 220 V 0.37 – 110 kW, 3 Phase, 380 to 415 V |
| Flow Range | 1 – 200 m³/hr |
| Head Range | 2 – 320 m |
| Liquid Temp. | -20°C to +120°C |
| Speed | 2900 rpm |
Material of Constructions
Cast Iron, SS 304, SS 316
Applications
Product Description
The TV Series vertical multistage pumps are engineered for high-efficiency, reliable liquid handling across industrial, municipal, and commercial applications. Operating at a frequency of 50Hz and a speed of 2900 rpm, they are available in a power range of 0.37 to 2.2 kW for single-phase 220 V and 0.37 to 110 kW for three-phase 380–415 V, providing solutions for both small and large-scale pumping requirements. With a flow range of 1 to 200 m³/hr and a head range of 2 to 320 meters, these pumps deliver precise, consistent, and high-pressure performance, making them ideal for demanding vertical pumping applications. They are designed to handle liquids with temperatures from -20°C to +120°C, offering exceptional versatility.
Constructed from high-quality materials including cast iron, SS 304, and SS 316, the TV Series ensures durability, corrosion resistance, and long service life even under challenging operating conditions. The vertical multistage design delivers high efficiency, smooth hydraulic performance, and compact installation, saving space while maintaining reliable operation. These pumps are well-suited for applications such as booster systems, industrial water supply, HVAC systems, and high-rise buildings.
Combining robust construction, operational efficiency, and versatility, the TV Series provides a trusted, long-lasting pumping solution. With premium materials, wide liquid temperature tolerance, and precise multistage performance, these pumps offer low-maintenance, reliable operation. For industries, municipalities, and commercial setups requiring dependable vertical multistage pumping solutions, the TV Series delivers high performance, energy efficiency, and operational excellence.
