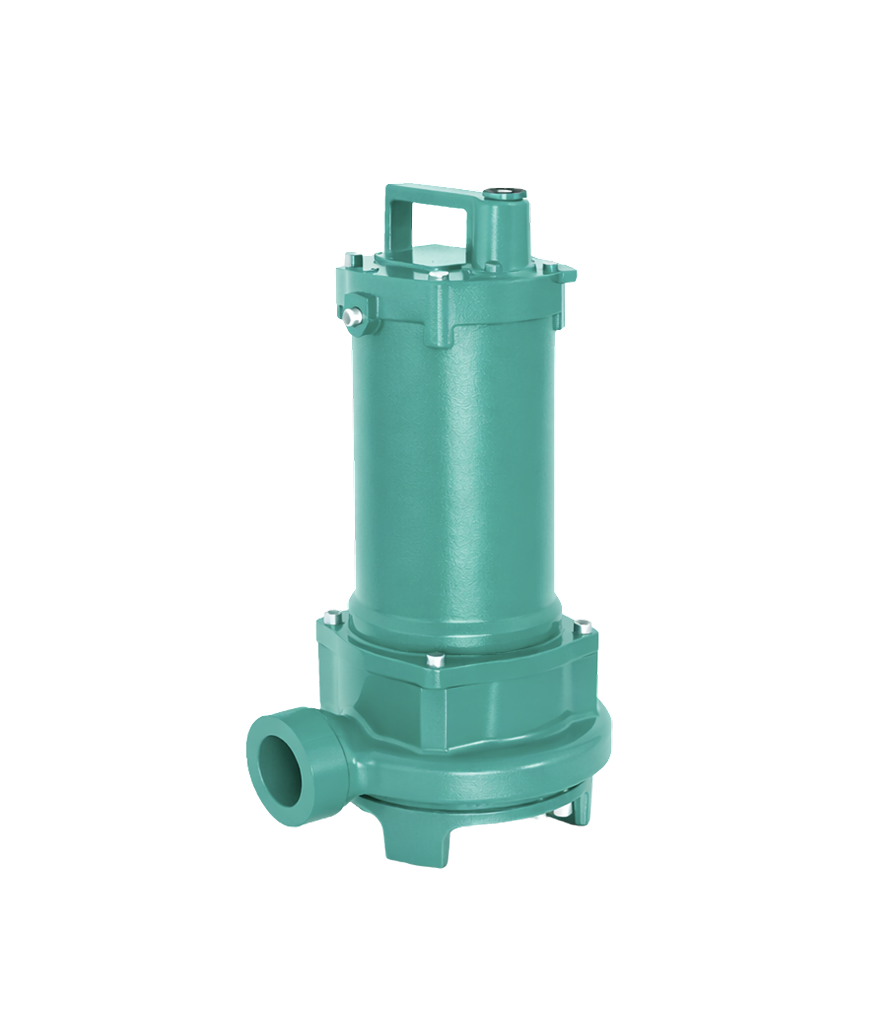

TGT Series
Technical Specification
| Frequency | 50Hz |
| Power range |
0.75 to 1.6 kW, 1 Phase, 230 V 0.75 – 9.5 kW, 3 Phase, 380 to 415 V |
| Flow range | 4 – 13.6 m³/hr |
| Head range | 2 – 60 m |
| Degree of Protection | IP68 |
| Speed | 2850 rpm |
| Impeller Type | Vortex with Cutting Device |
Material of Constructions
Cast Iron
Applications
Product Description
The TGT Series sewage pumps are designed for high-performance and reliable liquid handling in industrial, municipal, and construction applications. Operating at a frequency of 50Hz and a speed of 2850 rpm, these pumps are available in a power range from 0.75 to 9.5 kW, supporting both single-phase (230 V) and three-phase (380–415 V) systems. With a flow range of 4 to 13.6 m³/hr and a head range of 2 to 60 meters, the TGT Series delivers consistent and efficient pumping across a wide variety of applications. Their IP68-rated protection ensures safe operation even when fully submerged, while cast iron construction provides durability, corrosion resistance, and long service life.
It efficiently handles solids-laden and fibrous fluids, reducing clogging and maintaining smooth, uninterrupted operation. This makes the pumps ideal for wastewater management, sewage pumping, and industrial liquid transfer. Their robust and compact design allows for easy installation and maintenance while delivering reliable performance under continuous or heavy-duty conditions.
The TGT Series combines efficiency, reliability, and operational safety in a single solution. With high-quality cast iron constructions, these pumps provide long-lasting, low-maintenance performance. Their ability to handle challenging solids-laden liquids with minimal downtime makes them a trusted choice for demanding pumping applications. For industries, municipalities, and construction projects requiring dependable, high-efficiency pumping, the TGT Series delivers consistent performance, durability, and operational excellence.
