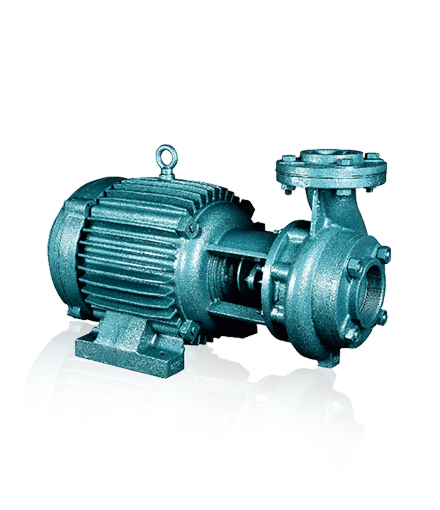

Centrifugal Monoblock Pumps ABOVE 3 HP
Technical Specification
| Power range (kW) | 2.2kw – 5.5kw (3.0HP – 7.5HP) |
| Version | 3PH,380V -415, 50HZ A.C |
| Speed | 2880 rpm |
| Duty type | S1 |
| Degree of protection | IP-44 |
| Max Head | 55m |
| Max. Flow rate | 115 m³ /hr |
| Nominal Outlet size in mm | 50 x40,65 x50, 80 x 65,& 100 x 80 |
| Maxi. Liquid Temperature | 33°C |
Material of Constructions
Fully AISI 304 / 316 / 904 L
Applications
Product Description
Centrifugal Monoblock Pumps above 3 HP are built for heavy-duty and industrial-grade performance, operating efficiently in demanding environments. With a power range of 2.2 kW to 5.5 kW (3.0 HP to 7.5 HP), these pumps run on a robust 3-Phase 380–415 V, 50 Hz AC configuration. Operating at a high speed of 2880 rpm, and designed for S1 continuous duty, they ensure uninterrupted service for intensive water transfer applications. A protection level of IP-44 enhances reliability in challenging working conditions.
The pump set features a varnish-impregnated high-grade enamelled copper windings, ensuring reduced heat generation, noise-free operation, and extended life. The hydraulic components are engineered for maximum efficiency, enabling the pump to achieve a maximum head of 55 metres and deliver flow rates up to 115 m³/hr. Available in outlet sizes such as 50×40, 65×50, 80×65, and 100×80 mm (Suc × Del), these pumps are well-suited for high-volume and long-distance water transfer. They can handle liquids up to 33°C, ensuring dependable performance across diverse applications.
These pumps excel in agricultural irrigation, commercial water supply systems, industrial operations, construction sites, and large-scale water distribution setups. Their strong build, corrosion-resistant materials, and energy-efficient hydraulic design make them ideal for users who require consistent, high-volume pumping for extended periods. With unmatched strength, durability, and operational efficiency, monoblock pumps above 3 HP stand out as the perfect solution for demanding and large-scale water-handling tasks.
