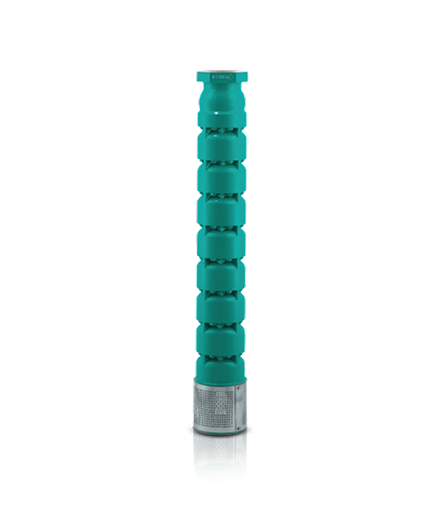

8” TC Series
Technical Specification
| Frequency | 50Hz |
| Power Range | 5.5 kW – 93 kW |
| Flow Range | 11.5 – 187 m3/hr |
| Head Range | 2 – 375 m |
| Speed | 2900 rpm |
| Horizontal Installation | Min. 30° Angle |
Material of Constructions
Cast Iron
Applications
Product Description
The 8” TC Series cast iron submersible pumps are engineered for large-scale water extraction from deep borewells and wells with high discharge requirements. Operating at a frequency of 50Hz and running at 2900 rpm, these pumps deliver flow rates from 11.5 to 187 m³/hr with a head range of 2 to 375 meters, making them ideal for agricultural irrigation, industrial plants, and community water distribution. With a power range of 5.5 kW to 93 kW and horizontal installation supported at a minimum 30° angle, they provide robust and reliable performance. Constructed from heavy-duty cast iron, the pumps offer exceptional durability and corrosion resistance, performing efficiently even in abrasive water conditions where other materials may wear quickly.
The 8” TC Series features advanced hydraulic components, and wear-resistant bushings, ensuring high flow rates, energy-efficient operation, and minimal friction losses. It guarantees reliable performance over extended usage, while the robust build minimizes vibration and noise, delivering consistent water output with reduced mechanical stress.
Designed for heavy-duty applications requiring continuous operation and high capacity, the 8” TC Series combines strong construction, easy serviceability, and long-lasting performance. With their dependable output, efficiency, and longevity, these pumps are a preferred choice for agricultural estates, large farms, and public water supply systems.
