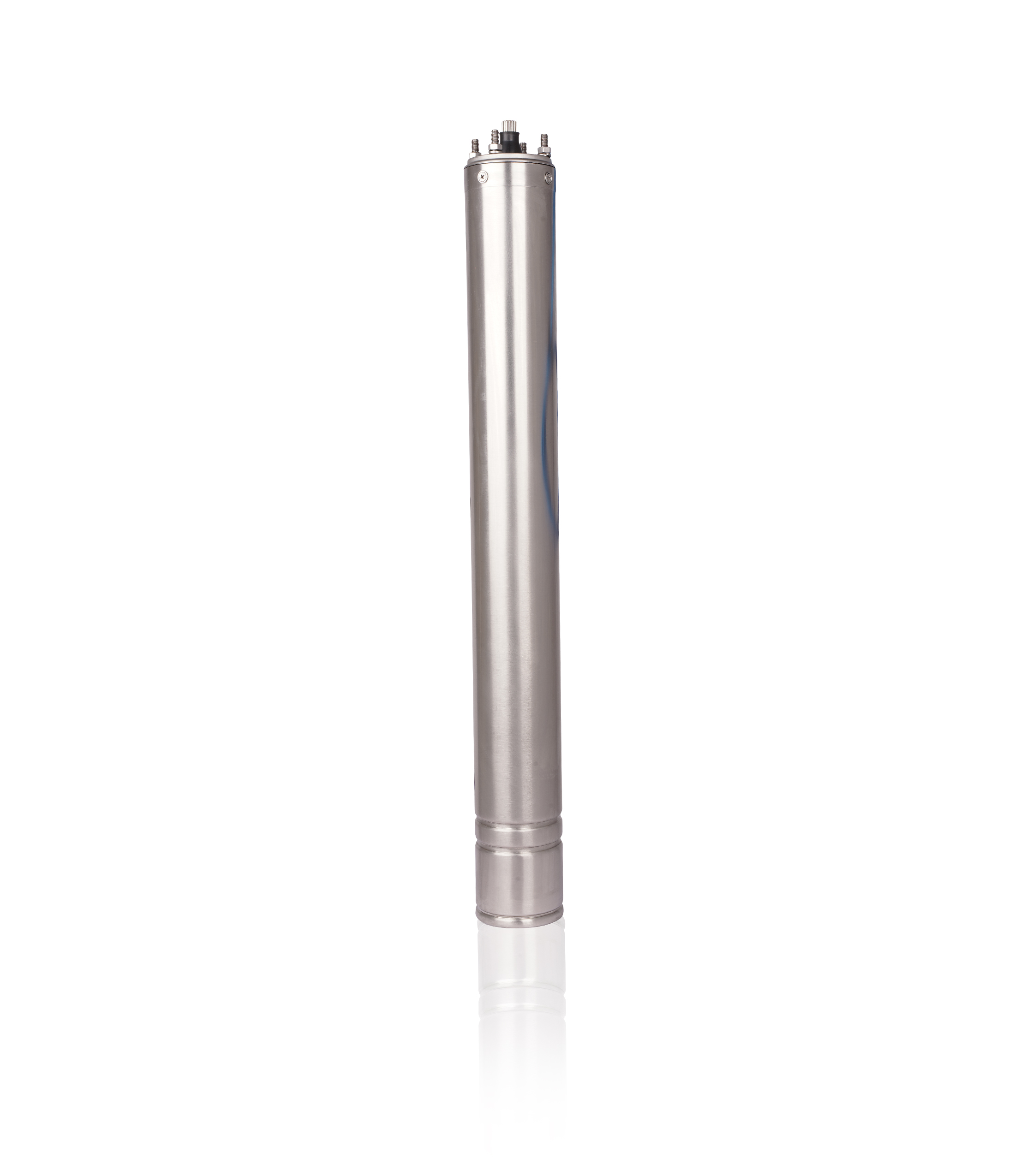

4” Elegant Series
Technical Specification
| Frequency | 50Hz |
| Power Range | 0.37 – 2.2 kW, 1 phase, 220 V 0.37 – 7.5 kW, 3 phase, 380 to 415 V |
| Liquid Temp | 38°C |
| Class of Insulation | “F” |
| Degree of Protection | IP58 |
| Speed | 2900 rpm |
Material of Constructions
SS304
Applications
Product Description
The 4” Elegant Series oil-filled motors are compact, efficient, and built for smooth operation in small to medium borewell systems. Operating at a frequency of 50Hz and running at 2900 rpm, these are available in 0. 37– 2.2 kW for single-phase 220V and 0.37 – 7.5 kW for three-phase 380–415V, making them suitable for domestic, agricultural, and light industrial water supply systems. Designed with specialized dielectric oil for cooling and lubrication, they provide superior heat dissipation and friction-free operation, while the sealed SS304 stainless steel construction prevents water ingress and protects internal components, ensuring reliable performance in challenging environments.
Equipped with high-quality windings, precision bearings, the 4” Elegant Series delivers consistent output with low noise and vibration. The oil-filled design enhances lubrication, minimizes wear on moving parts, ensuring smooth start-up and dependable performance even under voltage fluctuations.
Valued for their high efficiency, durability, and minimal maintenance requirements, the 4” Elegant Series offer a robust, long-lasting, and compact solution for stable water supply in domestic, agricultural, and light industrial applications.
